ROTEST

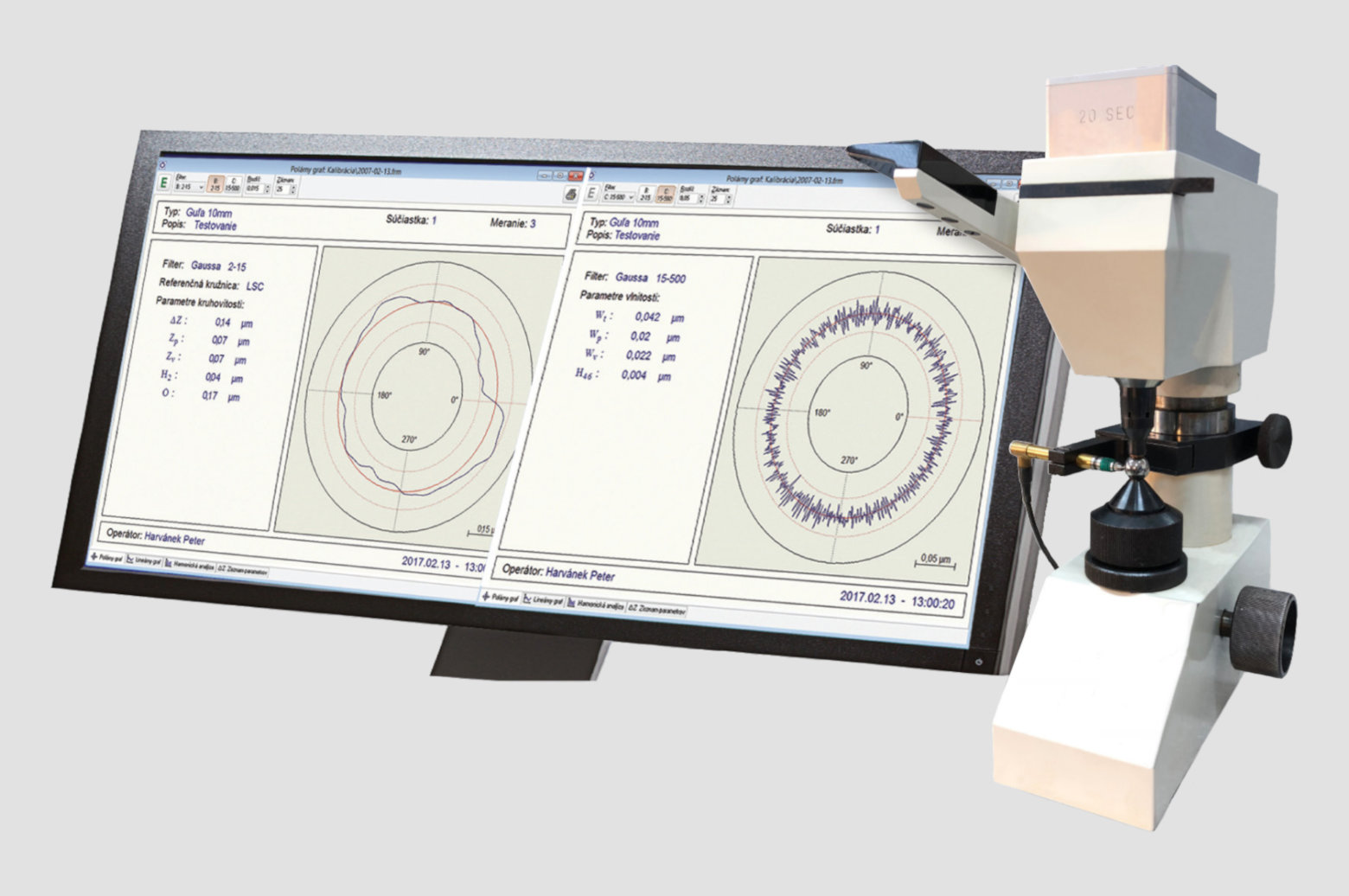

ROTEST, device to measure shape deviations of the bearing balls circularity, sinuosity, roughness.

It serves for measuring and evaluating the shape deviations of the bearing balls in the range of diameter 2 - 40 mm. It is designed for quick verification of variations in circularity, sinuosity and roughness in a selected cut of the bearing ball.

The device is placed on a sufficiently rigid desk.

Main parts:

  • mechanical part - stand, precise spindle, set of 5 conical bearings, set of carriers of rotary movement,
  • electrical part - electronical assessment unit with a processor, noise 8pm (picometres), program to evaluate deviations in circularity, sinuosity and roughness Roform, computer, inductive sensor, printer.

Tech­n­ical data

Meas­ur­ing parameters

  • diameter range of the measuring balls: 2 mm - 40 mm
  • ø scopes of balls measuring in the individual bearings: 2-3, 3-5, 5-9, 9-18, 18-40 mm
  • spindle's rotation frequency: 10 sec/spindle
  • radial will of the spindle: max. 0.05 μm
  • scanner type: induction
  • scanner's measuring power: max. 0.5 N
  • scanner's measuring scope: min. ±500 μm
  • total error of the measurement: max. ±5% from the scope

Sens­it­iv­ity scope on the elec­tronic evalu­at­ing unit

  • 6 automatically optional ranges
  • ±0.4, ±1, ±2, ±4, ±20, ±40 μm, ±2% from the set scope

Eco­nom­ics trans­fer stability

  • shift for 10 hours: ±3% from the min. scope
  • long-term for 6 months: ±5% from the min. scope

Work­ing parameters

  • working temperature: 15°C - 35°C
  • supply voltage: 220 V ±10% / 50 Hz
  • input in total: max. 200 VA
  • minimal working space: 800 mm x 450 mm

Dimen­sions, weight

  • mechanical parts (l x w x h): 160 mm x 280 mm x 390 mm
  • mechanical parts weight: 15 kg

Contact us

If you have any questions please contact us and we will help you.
