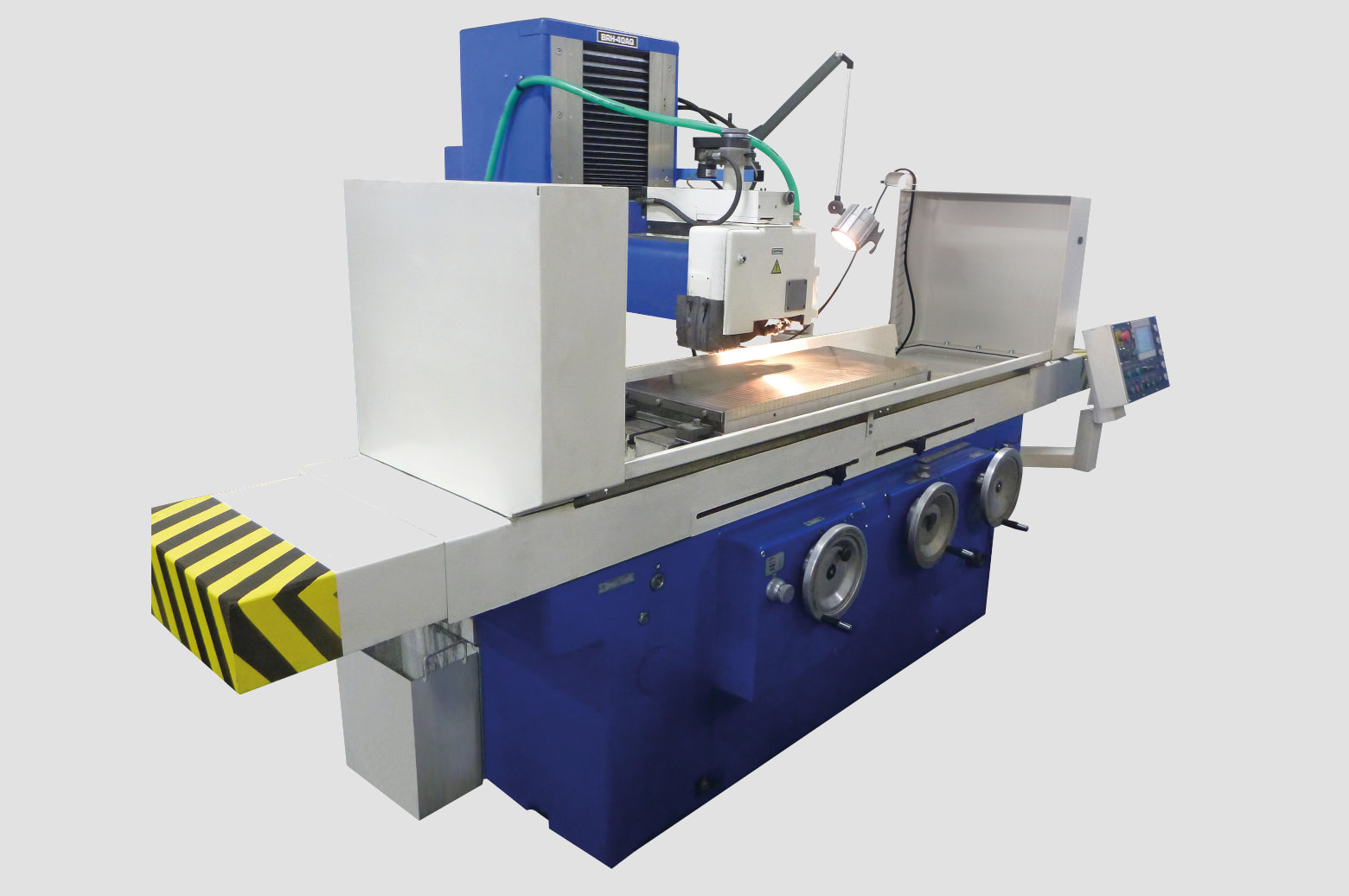

BRH 40AQ
Horizontal surface grinder.
| Workbench feed with continuous adjustment options | m/min | 1 - 30 |
| Maximum path of longitudinal workbench feed | mm | 1200 |
| Automatic continuous traverse feed | m/min | 0.2 - 3 |
| Hydraulic intermittent traverse feed | mm | 1 - 30 |
| Manual traverse feed (1 increment = 0.05 mm) | mm/turn | 5 |
| Manual vertical in-feed (1 increment = 0.005 mm) | mm/turn | 0.5 |
| Maximum vertical feed path | mm | 485 |
| Traverse fast feed | m/min | 3 |
| Vertical fast feed | m/min | 0.5 |
| Automatic vertical in-feed | mm | 0.0025 - 0.05 |
| Manual vertical in-feed (1 increment) | mm | 0.002 |
| Size of vertical feed path for one turn | mm/turn | 0.25 |
| Grinding spindle speed | rpm | 1850 |
| Total power of motor of grinding spindle | kW | 7.5 |
| Total input power | kVA | 15.0 |
| Machine noise at the operator's station | dB | 75 |
Technical data
Working parameters
- maximum grinding length: 1000 mm
- max. spacing between spindle axis and workbench working area: 660 mm
- grinding disc dimensions (diameter x width x clamping hole): 350 x 40 - 80 x 127 mm
- grinding spindle clamping cone: Morse 1:5
- maximum load of working table (including the fixture): 500 kg
Size, weight
- workbench working area: 400 x 1000 mm
- maximum machine floor space (length x width): 4650 x 2300 mm
- machine height: 2000 mm
- machine weight: 3800 kg
